The seamless blending of art and science defines the Clarté Lighting Absolute Light.
• Absolute = not subject to any limitation, omnipotent
2 Versions
• ABS = Non-DMX – works with 12 different non-DMX control platforms (32-bit processor)
• ABSX = DMX Version – works with ALL 512 standard DMX dimming systems (8-bit processor, 16-bit processor, or DMX-C Crestron)
Benefits
• Remote 24V or 48V DC Power Eliminates 100% of EMF interference or RFI noise in ceiling
• Control multiple fixtures with a single power supply vs 1 driver/controller per fixture.
• Remote up to 232′ away from the power supply and controller
• 48V class 2 wiring vs 120V class 1 wiring
• Clean modular remote easy access din rail installation.
• 5 preset features with over 70 preprogrammed commands to easily save as preset recall commands.
1. Tunable White – from 1700K to 7000K.
2. Warm Dim – from 3K at 100% of light to 2K at the lowest light level at .001%.
3. Wellness Light – with sunrise or sunset effect, color matched from the island of Hawaii – Can be set from 18 seconds or up to 18 hours to rise or the setting of the sun.
Sunrise Color Effect – Starts with a blue hue & changes subtly to indigo, violet, red, orange, yellow to finish with 6500K white at 12 noon.
Sunset Color Effect – Starts with 6500K white at 12 noon and changes subtly to yellow, orange, red, violet, indigo and than finishes with a blue hue
4. 16.7 million different colors with full saturation up or down of any selected color.
5. Daylight Tracer – allows the user to enter the longitude and latitude of their location to track and match the color of the sun throughout the day.
Our Absolute Light contains gamma corrected .001% dimming, displaying no color shift, using any of the preset color effects created with the push of the preset button.
The Absolute Light interface is a Non-DMX RGBW light fixture that is APPROVED to be utilized with any of the 10 control manufacturers’ product’s back end interface when connected to the Clarté Lighting Absolute Light.
Select by clicking on one of the following Lighting Controls Manufacturer for Integration Instructions:
1. AMX
2. Control 4
3. Crestron
4. Elan
5. Key Digital
6. Leviton
7. Lutron
8. On Controls
9. RTI
10. Savant
11. URC
12. Vantage
We invite you to start exploring the unlimited possibilities of the Clarté Lighting Absolute Light with any of our 1” 2” or 3”, round or square, PAR8 or PAR16 scale optical array recessed fixture.

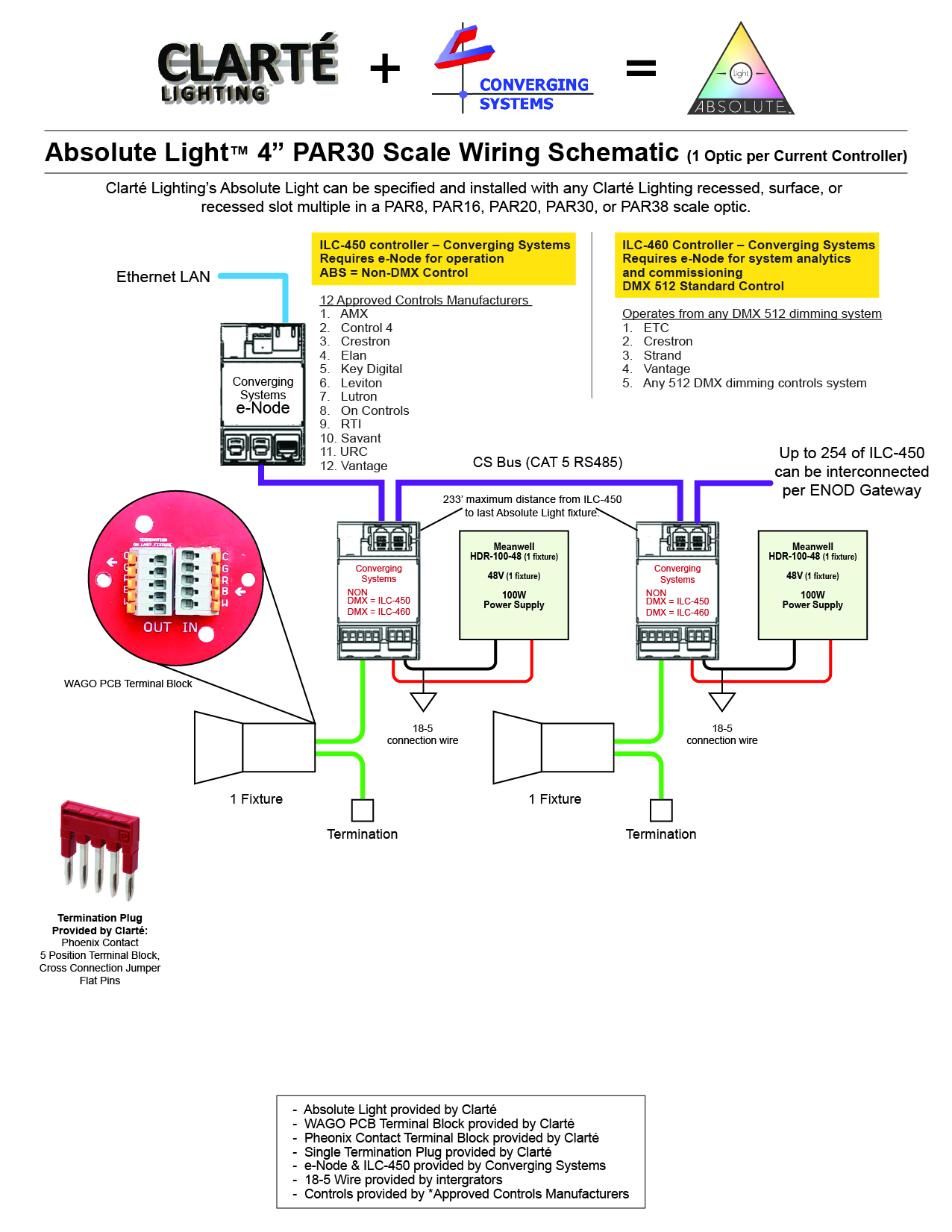

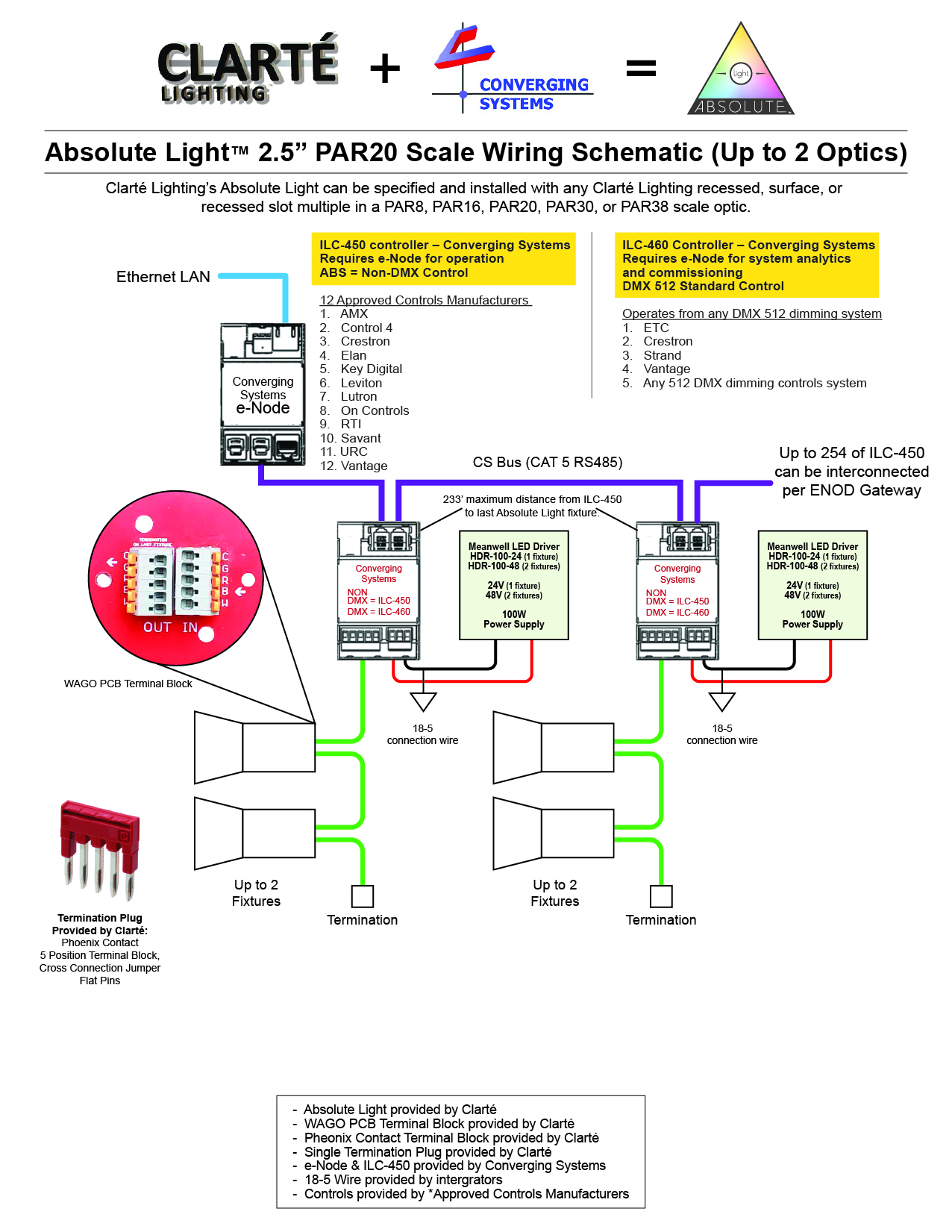

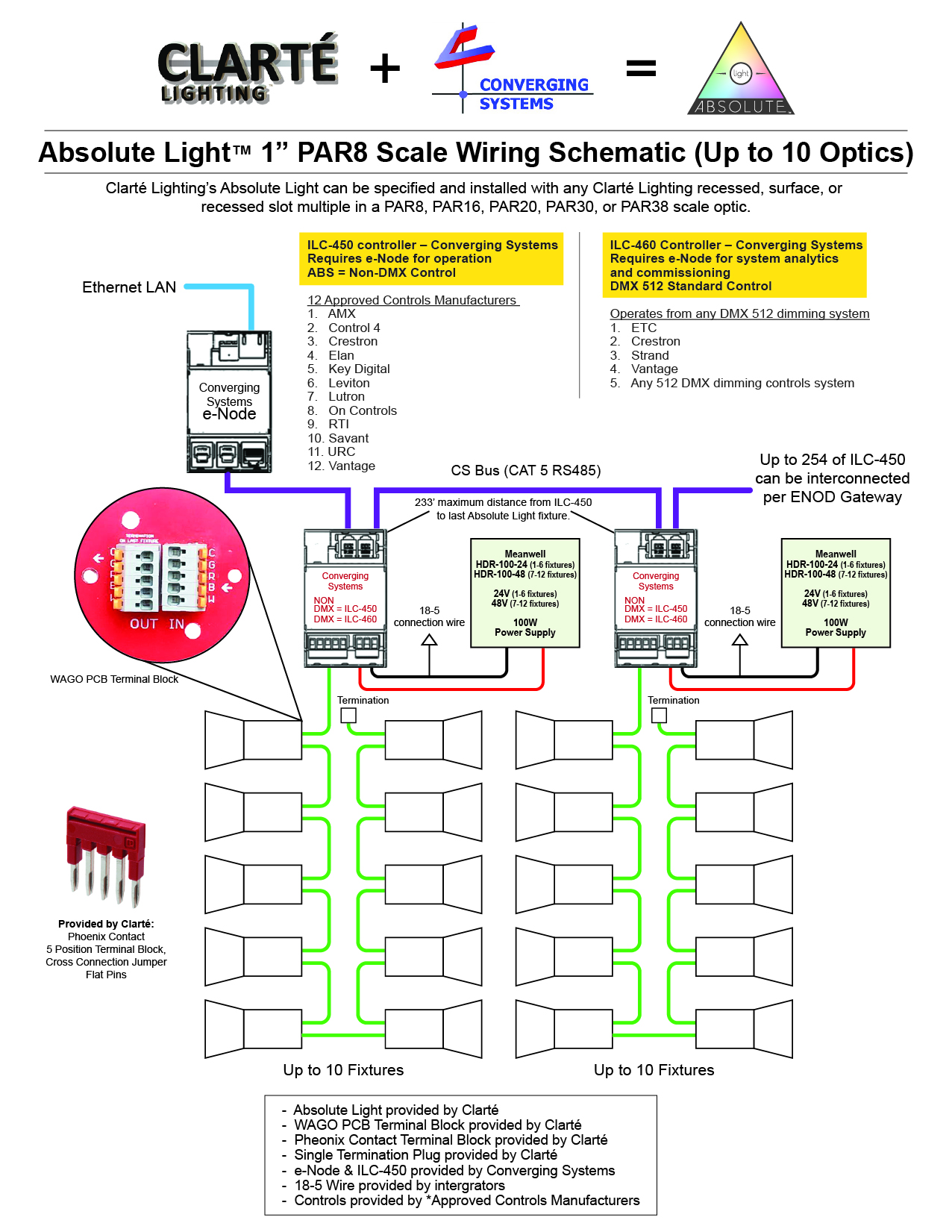

Absolute Light Wiring Schematic
Click images to download PDF
Absolute Light 2.0 Parts & Information – (orders as of 06/01/2024 will ship 2.0)
• ↓18-5 AWG Wire (Home Depot)
• ↓18-5 AWG Wire (Amazon)
• ↓WAGO PCB Terminal Block
• ↓Absolute Light 2.0 Install Sheet
• ↓Absolute Light 2.0 Connector Video
Absolute Light 1.0 Parts & Information
• ↓20-8 Solid Core Wire
• ↓Phoenix Male Connector 1815329 (2 preinstalled per Absolute Light)
• ↓Phoenix Female Connector 170484 (2 supplied per Absolute Light)
• ↓PAR8 Wiring Schematic
• ↓PAR16 Wiring Schematic
• ↓PAR20 Wiring Schematic
• ↓Absolute Light Connector Video
Downloads
• ↓1 to 6 PAR8 Fixture Per Power Supply (24V)
• ↓1 or 2 PAR16 Fixtures Per Power Supply (24V)
• ↓7 to 12 PAR8 Fixtures Per Power Supply (48V)
• ↓3 or 4 PAR16 Fixtures Per Power Supply (48V)
• ↓1 or 2 PAR20 Fixtures Per Power Supply (48V)
• ↓Converging Systems E-NODE – Wireless Ethernet Adapter (Controls up to 232 ILC 450s)
• ↓Converging Systems Non-DMX Control – ILC – 450 (Controls up to 4 Absolute Lights)
• ↓Converging Systems DMX Control – ILC – 450 (Controls up to 4 Absolute Lights)
• ↓Din Rail Installation Details
• ↓Best Practices Installation Notes
• ↓Converging Systems – Matching Linear RGBW
• ↓Absolute Light Trouble Shooting Color Issues
